GOF2000 Thermal Gasket
产品类别:导热硅胶片
产品介绍:Graphite‐Over‐Foam w/ Silicone Foam
  • Product Description
  • Features And Benefits
  • Value
  • Specification
  • 下载规格书

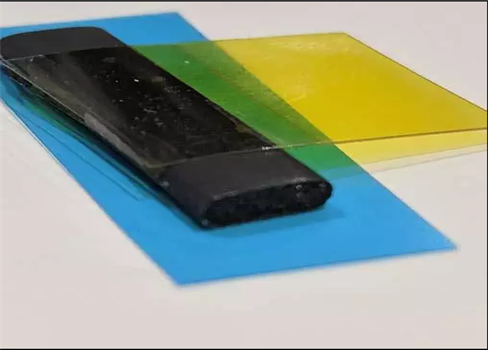

  • Laird’s Graphite‐over‐Foam (GOF), GOF2000 thermal gasket, provides thermal transfer  performance in the form of a traditional wrapped compressible foam gasket. GOF2000  combines the thermal transfer performance of the Tgon™ 9000 synthetic graphite outside  wrap and the repeatable compression and rebound of a foam core. GOF2000 utilizes Laird  LSF series silicone foam allowing for a UL V0 flammability rating.

    • High Deflection
    • High thermal transfer rate especially suitable for large gap sizes
    • Repeatable compression and rebound cycles
    • Lightweight
    • Low force thermal interface
    • Abrasion resistant exterior
    • Ease of manufacturing for high volume
    • Use multiple 5mm width columns to lower overall thermal resistance
    • High operating temperature suitability and UL V0 flammability rating
    • Provides compressible thermal interface for sliding connections. Ideal for insertion  applications.
    • Ensures thermal interface contact in high movement locations that would separate a  traditional thermal putty, gel, or grease
    • Offers lower force than traditional thermal gap pads for pressure sensitive  applications
    • Ideal thermal performance for large gap sizes
    • Improved reliability performance of electronics
    • RoHS and REACH compliant

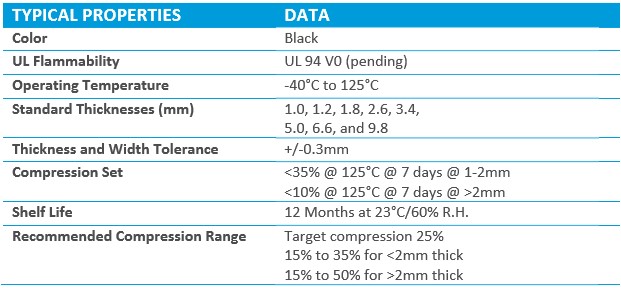

  • Specification
