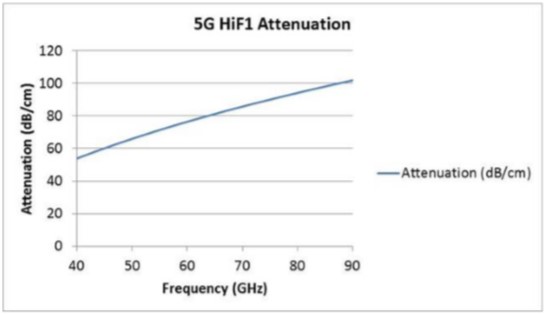

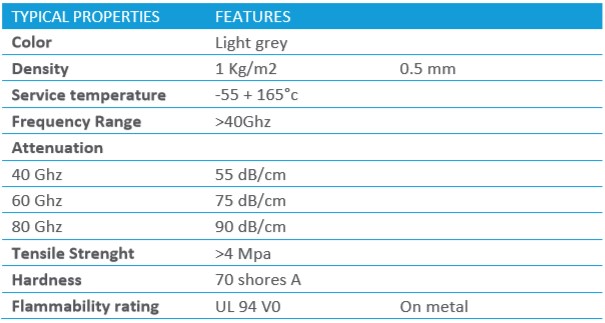

Eccosorb 5G HiF 1 is a dielectrically loaded elastomer with excellent absorption properties in the high frequencies of the mmWave range. It is flexible with a high service temperature (165C). It has a UL94 V-0 fire retardancy rating. Based on silicone resin along with oxidation resistant filler, It performs well even in harsh environement . The material is effective in reducing specular reflections as well as suppressing cavity resonances especially above 40 ghz and surface currents.
High performance
High Frequencies >40ghz
Outdoor
Telecom Infrastructure
Mobile Telecom
Handset /Consumer
IoT

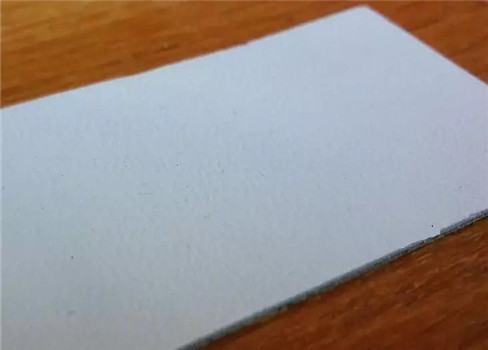

Standard sheet size is 305mm x 305mm (12”x12”)
Standard thickness are 0.5mm (0.020”) and 1mm (0.040”)
Customized shapes and thicknesses can be supplied, as well as sheets with selfadhesive backing (suffix –SA).
