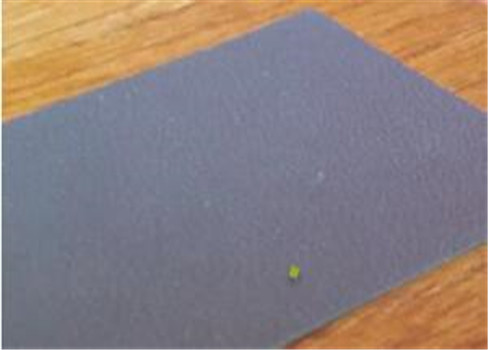

5G MeF 1 is a magnetically loaded silicone elastomer. It is very flexible and has a high service temperature (165°C). It is recommended for all mmWave applications in the 18-40 GHz range. It has a UL94 V-0 rating.
5G Frequencies
Low outgassing
High magnetic loss
RoHS/Reach compliant
High performance at frequencies 18-40GHz
Conformable
Standard sheet size is 305mm x 305mm (12”x12”)
Available in several thicknesses on demand
Pressure Sensitive Adhesive option available
Telecom Infrastructure
Mobile Telecom
Handset/Consumer
IoT
Available from June 2018
Standard sheet size is 305 mm x 305 mm (12”x12”)
Standard thickness are 0.25mm (0.010”), 0.50mm (0.020”), 1.0mm (0.040”), 1.5mm (0.060”) and 2.54mm (0.100”)
Customized shapes and thicknesses can be supplied, as well as sheets with self-adhesive backing (suffix – SA).
