绕线SMD共模扼流圈

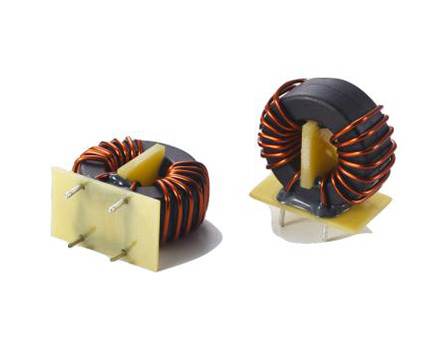

CMX3016 Broadband Wire Wound Power Common Mode Chokes
Product Category:Wire-wond SMD Power Common Mode Chokes
Product Introduction: It can be used in high power and high density power supply application for Telecom (base station, router, server), and industrial equipment, automotive power supply (EV charging adapter) and any other general application that need high power and high efficiency.
  • Product Description
  • Features
  • TDS Download
  • CMX3016 series common mode chokes offer optimized performance for 100 KHz to 300 MHz broadband application, enabling higher switching mode designs up to MHz for better power conversion efficiency and higher power supply application.  It can be used in high power and high density power supply application for Telecom (base station, router, server), and industrial equipment, automotive power supply (EV charging adapter) and any other general application that need high power and high efficiency.
    • Power common mode choke for large current up to 20A
    • Built with nanocrystalline core
    • Excellent impedance for broadband noise suppression up to 300MHz
    • Through hole installation
    • Operating temperature -40 degree C to 125 degree C (Including self-heating)
    • Sectional winding construction with spacer to improve isolation
