Product Introduction：Laird Tflex™ HD700 is our latest product in our High Deflection series.
Product Description
Features And Benefits

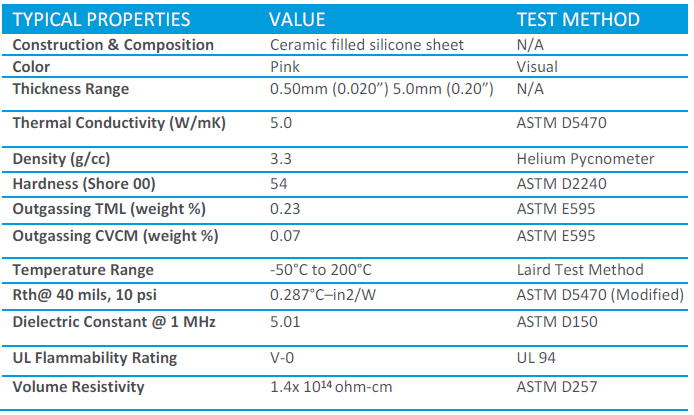

Specification
TDS Download
Laird Tflex™ HD700 is our latest product in our High Deflection series. Tflex™ HD700 combines 5W/mK thermal conductivity with superior pressure versus deflection characteristics. The combination will allow minimal stress on components while also yielding low thermal resistance.
As a result, less mechanical and thermal stresses will be experienced within your device. Tflex™ HD700 is available in thickness from 0.5mm (0.020”) to 5mm (0.200”). Laird can provide material to meet your production needs in any region through our local production facilities.
5.0 W/mK thermal conductivity
Low pressure versus deflection
Excellent surface wetting for low contact resistance
Minimizes board and component stress
Large tolerance applications
Environmentally friendly solution that meets regulatory requirements including RoHS and REACH
